£44.44

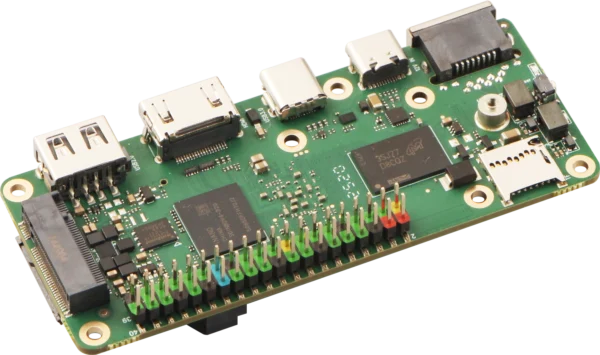

Open-source and hackable SBC based on the Realtek RTD1619B, powered by FydeOS.
We’ve made everything open-source on our Wiki.



Now XpressReal T3 can run:

Description

XpressReal T3

Tech Specs

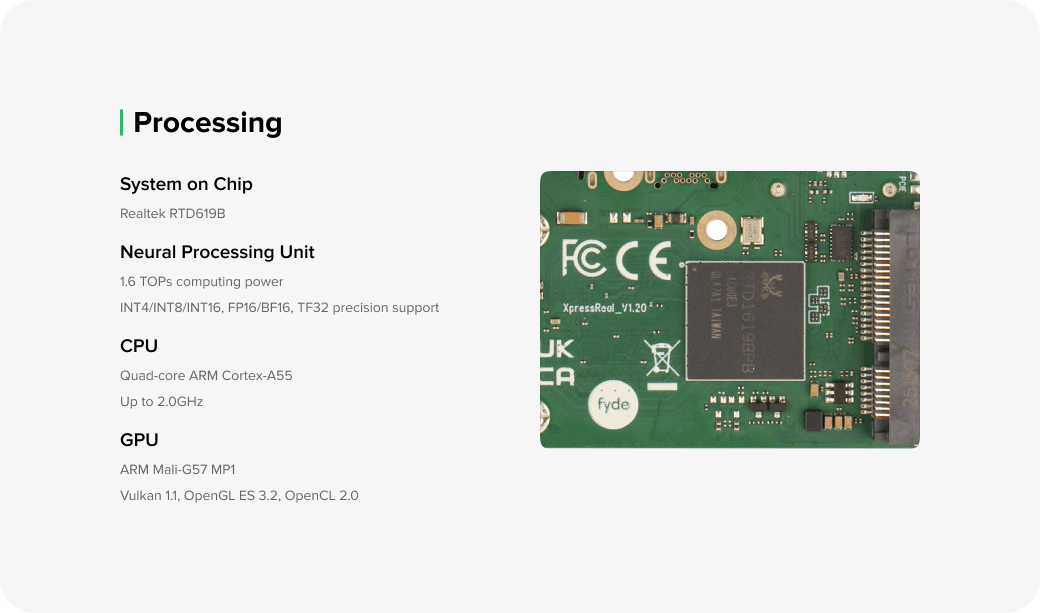

Processing

  • SoC : Realtek RTD1619B
  • CPU : Quad-core ARM Cortex-A55, up to 2.0 GHz
  • NPU : 1.6 TOPS (INT4 / INT8 / INT16, FP16 / BF16 / TF32)
  • GPU : ARM Mali-G57 MP1 — Vulkan 1.1, OpenGL ES 3.2, OpenCL 2.0

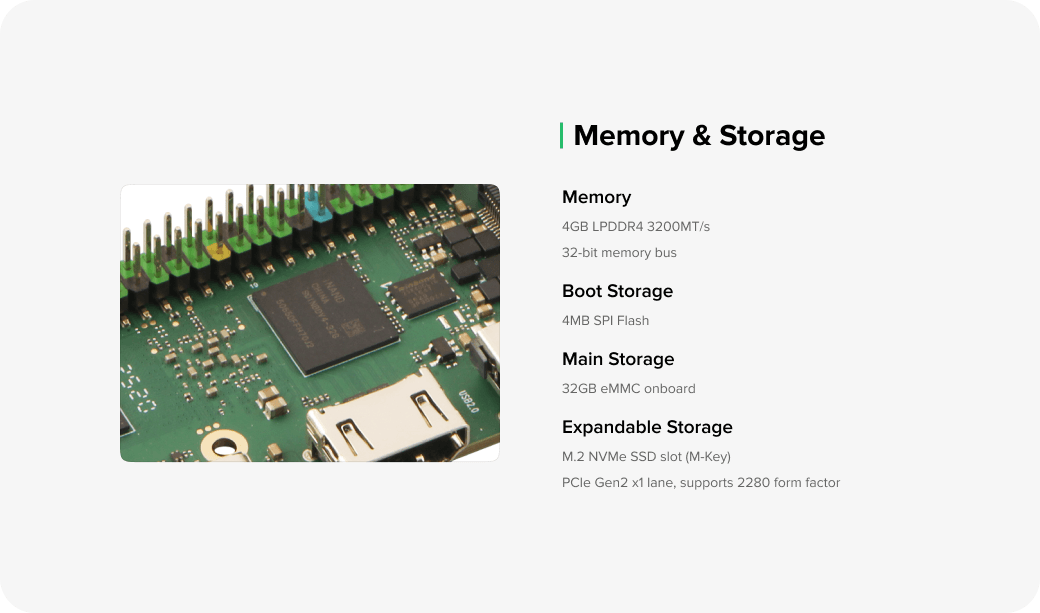

Memory & Storage

  • Memory : 4 GB LPDDR4 @ 3200 MT/s (32-bit bus)
  • Boot Storage : 4 MB SPI Flash
  • Main Storage : 32 GB eMMC (on-board)
  • Expansion : M.2 NVMe SSD slot (M-Key, PCIe Gen2 ×1, 2280)

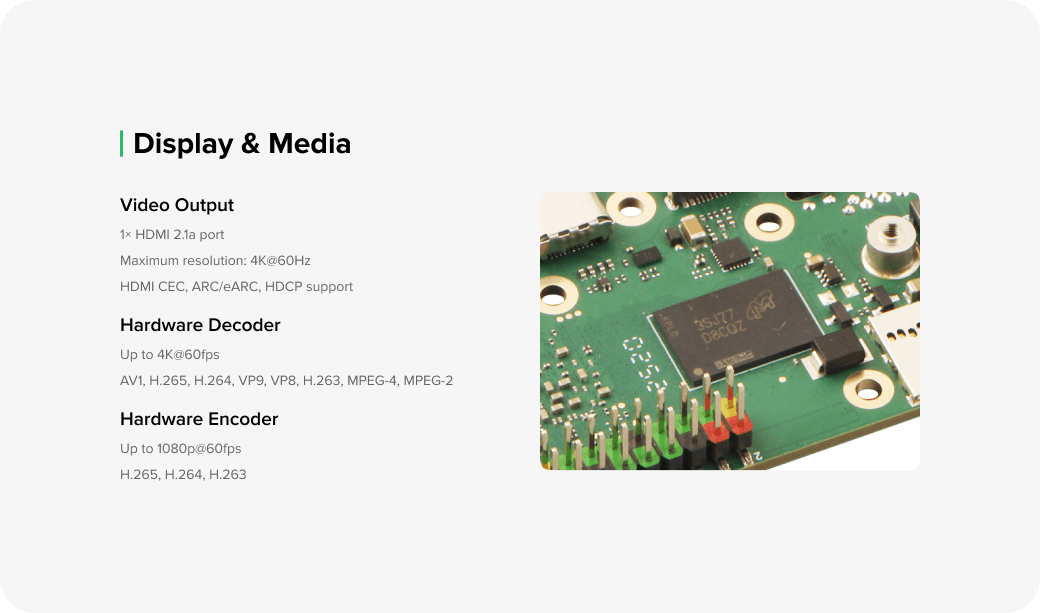

Display & Media

  • Video Output : 1 × HDMI 2.1a — up to 4K @ 60 Hz, CEC / ARC / eARC / HDCP

Connectivity

  • USB : 1 × USB-A 2.0 (480 Mbps), 1 × USB-C 3.2 Gen 1 (5 Gbps, dual-role)
  • Ethernet : 1 × Gigabit RJ-45 (10/100/1000 Mbps) with passive PoE
  • Additional Slots : Full-size SD 3.0, CFexpress Type A (PCIe 2.0 5 Gbps)

Software

  • Yocto SDK
  • Debian Linux
  • OpenFyde OS
  • Android

Development Resources

  • Complete hardware & software documentation
  • Open-source drivers & SDK
  • Regular firmware & OS updates
  • Active developer community

Additional information

SoC

Realtek RTD1619B
CPU

Quad-core ARM Cortex-A55, Up to 2.0GHz
GPU

ARM Mali-G57 MP1, Vulkan 1.1, OpenGL ES 3.2, OpenCL 2.0.
NPU

1.6 TOPS
RAM

LPDDR4 3200MT/s, 4GB
ROM

4MB SPI Flash
Onboard eMMC: 32 GB
microSD card
M.2 NVMe SSD slot (M-Key)
Display

HDMI 2.1a 4K@60Hz, HDMI CEC, ARC/eARC, HDCP support
MIPI DSI
Wireless

WIFI 6 + BT 5.4
Mini PCIe (AP/4G LTE)
USB

1× USB Type-C 3.2 Gen1
1× USB Type-A 2.0
Other

40-Pin Header
Power supply

USB-C PD
GbE with Passive PoE
Size

96mm x 40mm
