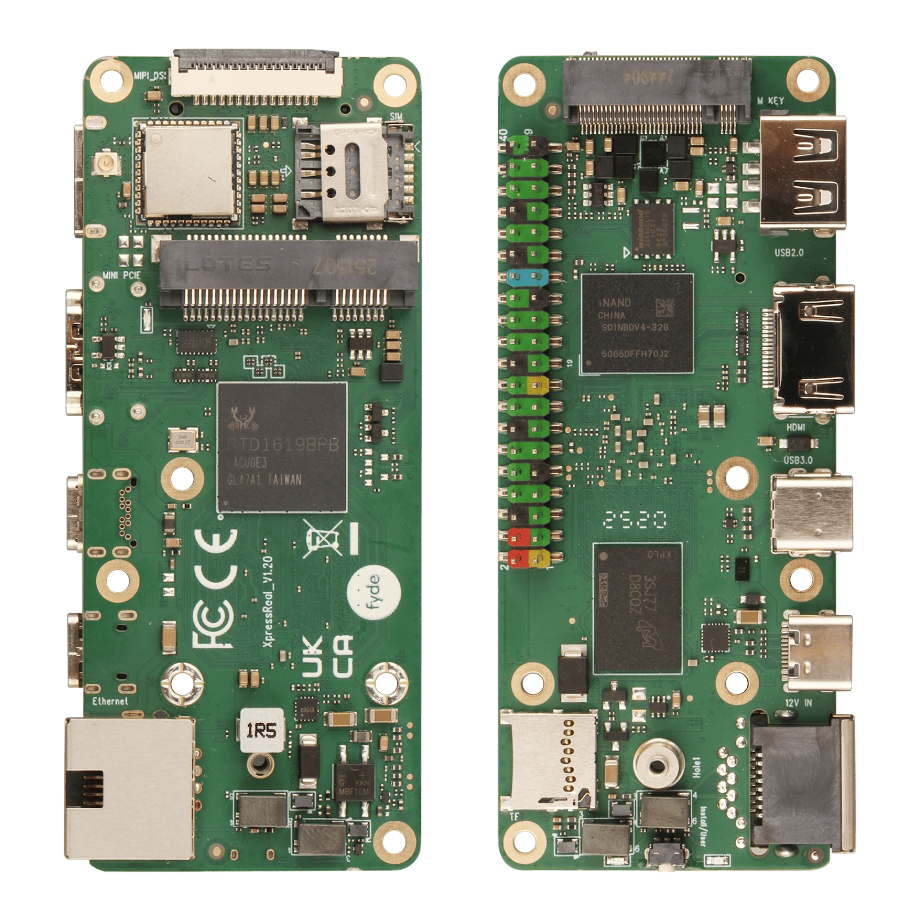

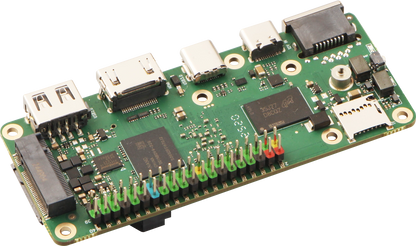

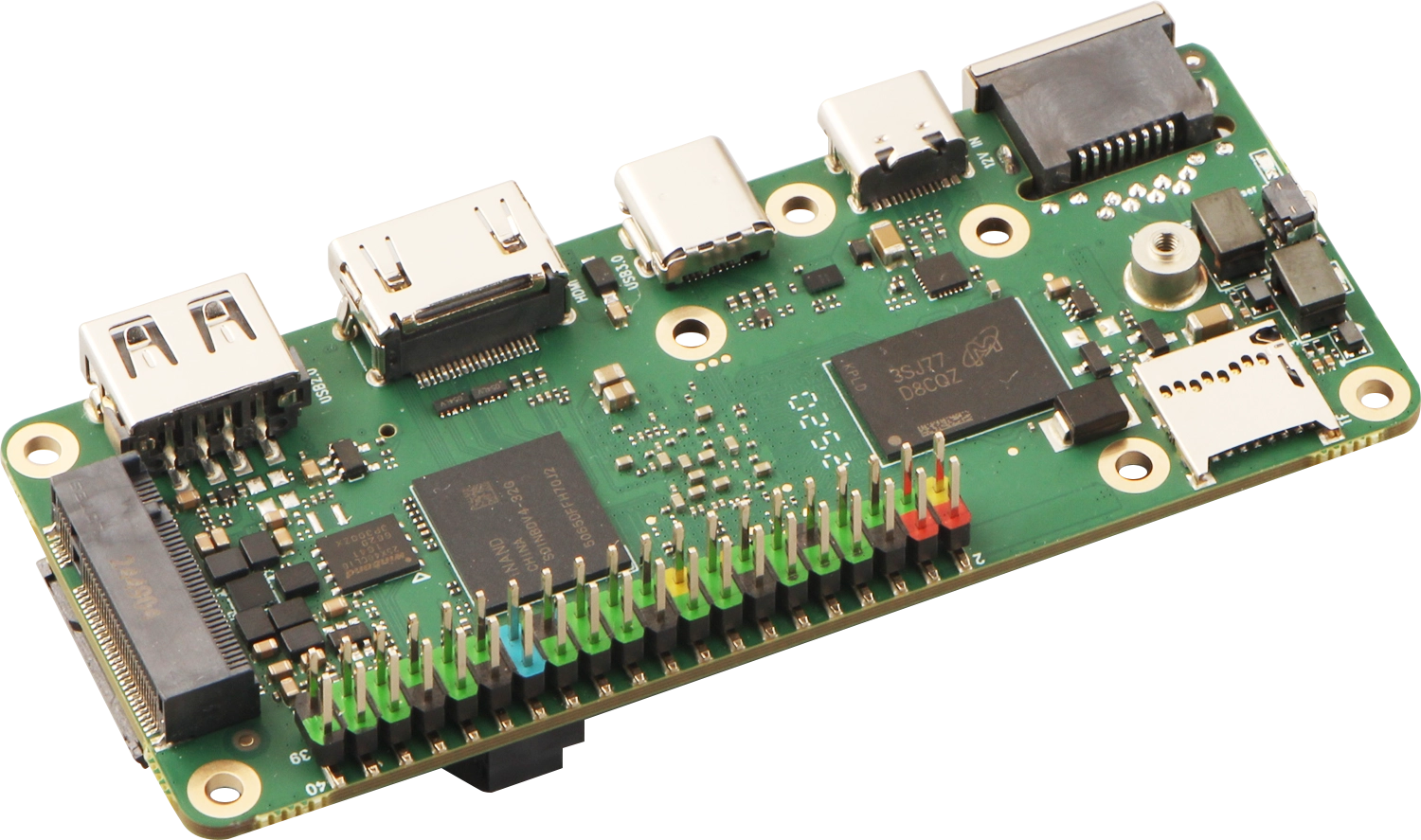

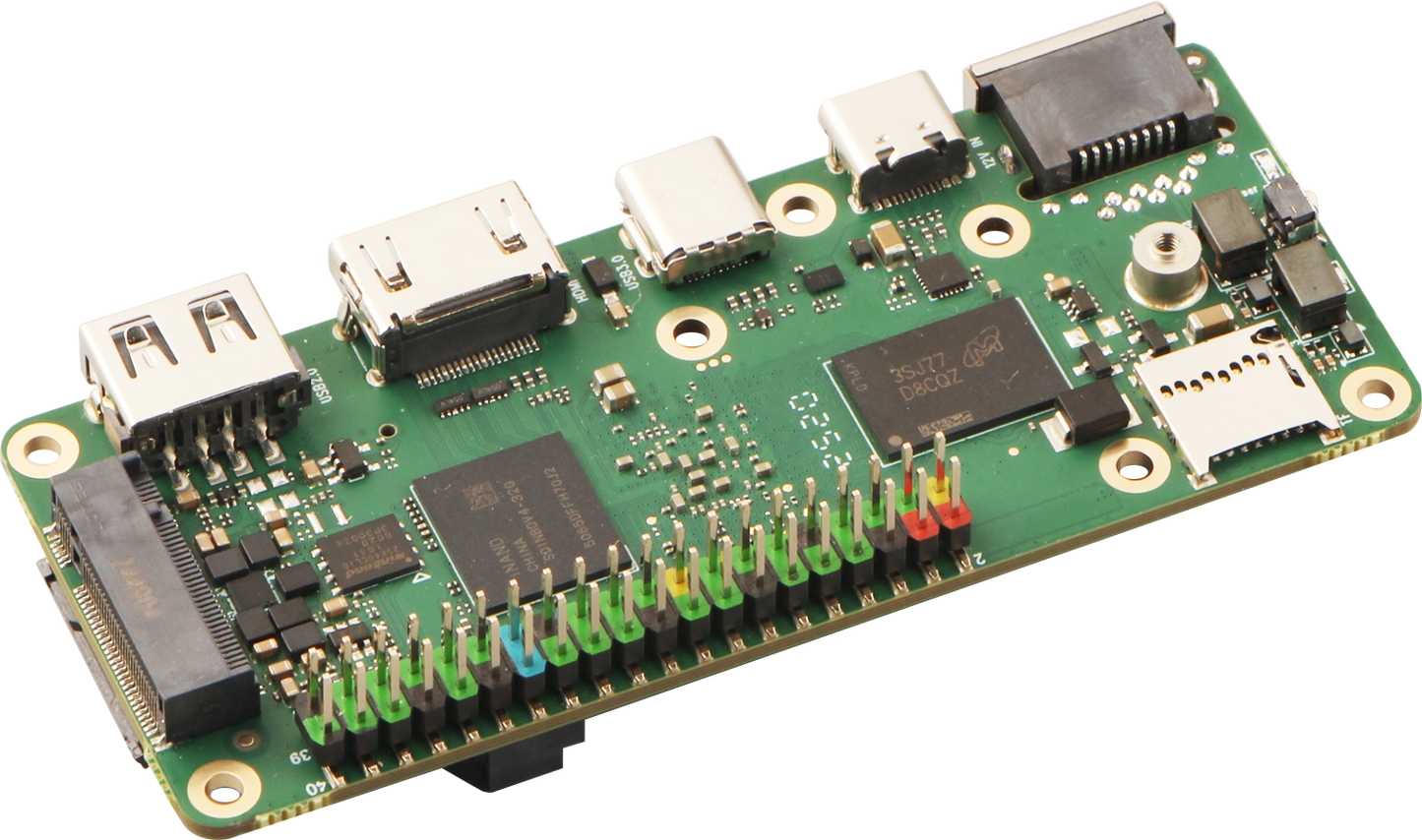

XpressReal T3

XpressReal T3

Regular price £44.44
Regular price Sale price £44.44
Sale Sold out
Open-source and hackable SBC based on the Realtek RTD1619B, powered by openFyde.
Also runs Home Assistant OS, Debian, Ubuntu, Armbian, OpenWrt and AOSP.
Fully open source — schematics, firmware and docs on the Wiki
Quantity

Not restocking soon — follow the FydeOS community for updates

View full details

XpressReal T3

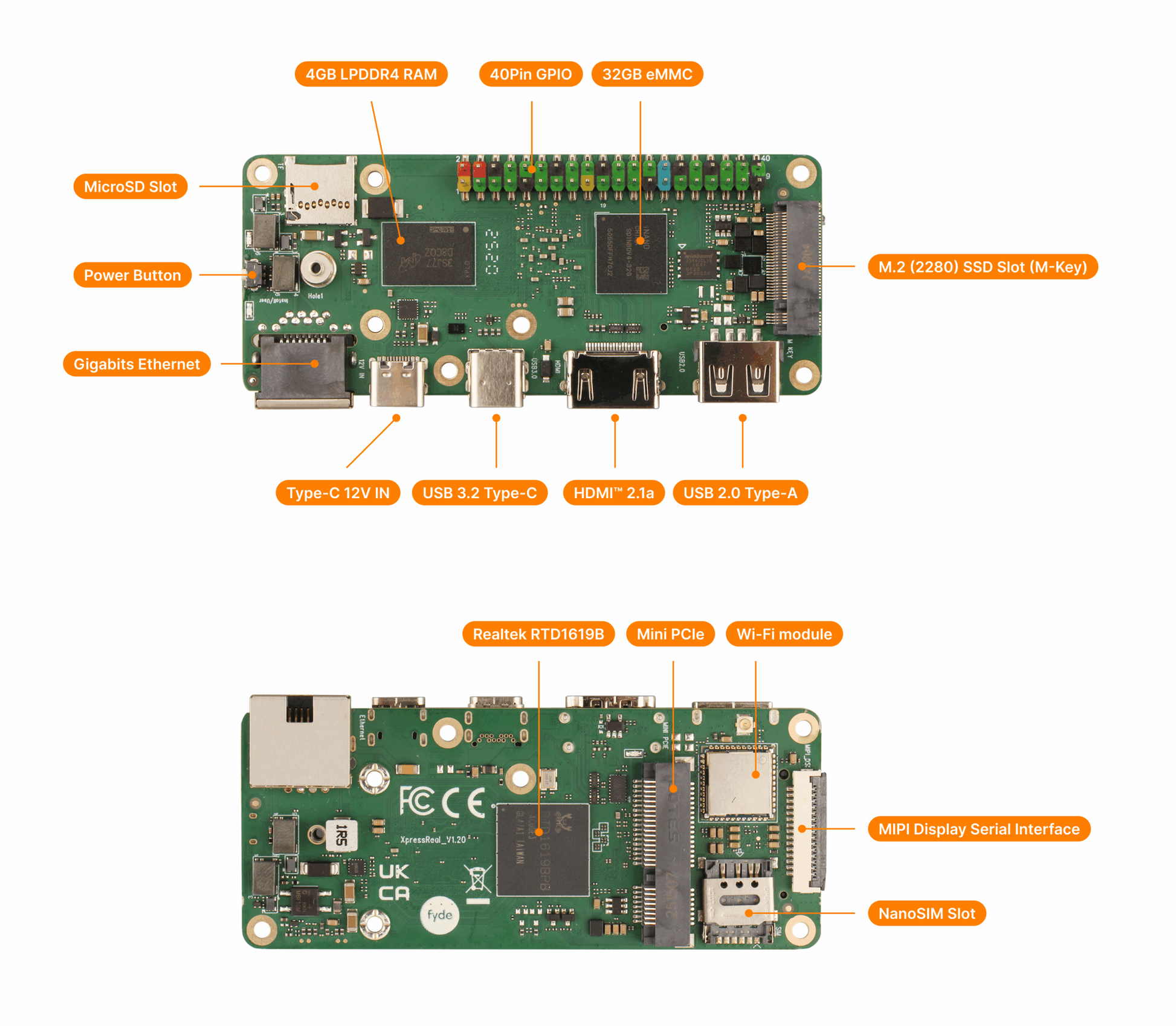

Tech Specs

Processing

  • SoC : Realtek RTD1619B
  • CPU : Quad-core ARM Cortex-A55, up to 1.7 GHz
  • NPU : 1.6 TOPS (INT4 / INT8 / INT16, FP16 / BF16 / TF32)
  • GPU : ARM Mali-G57 MP1 — Vulkan 1.1, OpenGL ES 3.2, OpenCL 2.0

Memory & Storage

  • Memory : 4 GB LPDDR4 @ 3200 Mbps (32-bit bus)
  • Boot Storage : 4 Mb SPI Flash
  • Main Storage : 32 GB eMMC (on-board)
  • Expansion : M.2 NVMe SSD slot (M-Key, PCIe Gen2 ×1, 2280)

Display & Media

  • Video Output : 1 × HDMI 2.1a — up to 4K @ 60 Hz, CEC / ARC / eARC / HDCP

Connectivity

    • USB : 1 × USB-A 2.0 (480 Mbps), 1 × USB-C 3.2 Gen 1 (5 Gbps, dual-role)
    • Ethernet : 1 × Gigabit RJ-45 (10/100/1000 Mbps) with passive PoE
    • Additional Slots : microSD 3.0

Software

  • Yocto SDK
  • Debian Linux
  • OpenFyde OS
  • Android

Development Resources

  • Complete hardware & software documentation
  • Open-source drivers & SDK
  • Regular firmware & OS updates
  • Active developer community

Shipping

Shipping is calculated at checkout based on your delivery address. Most destinations are served door-to-door by express courier (DHL, UPS, EMS or similar) on a delivered-duty-paid basis — customs clearance is included, with no surprise charges on delivery. Orders are dispatched from our factory in China; once your order ships you will receive a tracking number.

Indicative delivery times: up to 2 weeks (US), 3 weeks (EU), 4 weeks (rest of world).

Returns & warranty

Change-of-mind returns are accepted within 30 days of delivery for items in resale condition — contact help@madeforfydeos.com for an RMA number before shipping anything back. The Fydetab Duo and XpressReal T3 carry a one-year limited warranty against defects in materials and workmanship; software and firmware modification is encouraged and does not void it. Full details in our Refund Policy.
